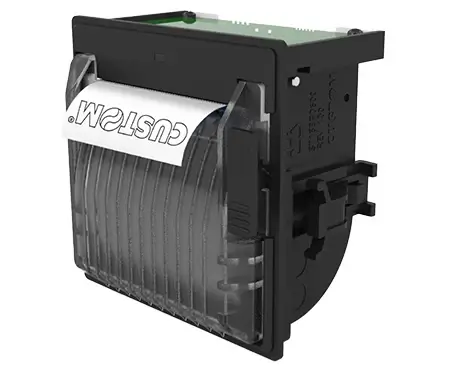

CUSTOM PLUS2 58mm (2.28in) Panel Printer

915CW180400322 / 915CW180265333

£124.00

For bulk orders please contact us.

The latest generation of CUSTOMS’s principal 2-inch panel mounted printer series, the PLUS2 is one of the best and most reliable in its class. Its compact design allows for compatibility with most mobile printing applications but it is large enough to accept a 50mm diameter paper roll. The PLUS2 MOV model is constructed to counter the paper roll unspooling effect of vehicle vibrations. It is the most durable panel printer in its class, performing at an industry leading operational temperature range. A prominent and lighted central button facilitates quick and easy one-handed paper loading. If you are looking for a panel printer that can withstand demanding industrial and field use in rigorous conditions, then look no further than the Plus2. Power input is 4V to 7.5Vdc and there is a module available that can take 9V to 42Vdc.

ADD TO QUOTE

P/N: 915CW180400322 / 915CW180265333

  • Workshop/Garage equipment
  • Medical device
  • PC panel and control systems
  • Weighing instruments: industrial, portable
  • Sterilization equipment
  • Taximeters
  • Truck tachographs
  • Fire panel printer
  • Alarm panel printer
  • Access control
  • Measurement devices: durometers, electrical devices, etc…
Benefits
  • Compact dimensions – suitable for handheld and mobile equipment.
  • Durability – Can operate in extreme environmental conditions.
  • Built with energy efficient functionality in mind to reduce power consumption.
Unique Features
  • Wide range of power inputs, from 3.3v to 40v dc
  • ECOMODE and POWER OFF functions for energy efficiency
  • Industry leading operational temperatures: -20 to 70 degrees
  • Heat Sink: High reliability with big work loads
  • Double opening of the cover: “comfort” with lit, centrally-located button or with “double hook”
  • USB 2.0 on board
  • RGB status LED
  • FEED button
Additional Features
  • EASYLOCK fixing system – clicks into panels easily with no requirement for tools
  • Clamshell paper loading – Allows for easy frontal paper loading
  • Can print on “linerless” adhesive paper or standard thermal paper

Columns 24/40/42
USB: 24/36/40/42
Printing Speed (mm/sec) >50mm/sec
Character Set ASCII standard, International
USB: PC837, PC850, PC860, PC863, PC865, PC858 (euro)
Printing Format Normal, width from 1 to 2, bold, negative, underlined
USB: Width/height from 1 to 8, bold, negative, underlined, script
Printing Direction Straight, 180°
USB: Straight, 90°, 180°, 270°
Paper Width 57mm /- 0.5mm
Paper Weight from 50 to 70 g/m²
Roll Dimension Ø 50 mm max
Emulation Custom
Data Buffer 128 Bytes
USB: 2 kB
Flash Memory 32 kB
USB: 512 kB
Graphic Memory 1 logo of 384 x 85 dots
USB: 4 logo of 384 x 680 dots
Drivers Win XP, Vista, 7, CE 5.0 Driver (PLC ), Linux 32/64 bit compatible
Software Tools FontMake, LogoMake, UpgCePrn
Power Supply 5-8 Vdc, optional module for 9-42 Vdc
MTBF 803,600 hours (electronic board)
Operation temperature -20°C 70°C
Dimensions 85.5x85x55mm
Weight 141 g
Available Versions
Description Part Number
PRINTER 57MM PLUS2 RX65USB RS232 TTL 915CW180400322
PRINTER 57MM PLUS2 RX65 USB RS232 TTL MOV 915CW180265333

Included with Packaging: PLUS2 Printer, Paper Roll Holder, Test Paper Roll.

Options
Description Part Number
Power Supply Switching 25W 5V 5A 964GE010000003
Starter Kit PLUS2 44000000033000
Cable USB 1m mini USB 26500000000330
Kit Board Power Supply PLUS2 8-42V 979CW180000001
Grey Frame 112×112 Hooks – to allow conformity with FH190 and FT190 series I.e. hotswap 974CW010000315
Consumables
Description Part Number
Thermal Paper Roll 57-50 57mm DI50 67300000000344
