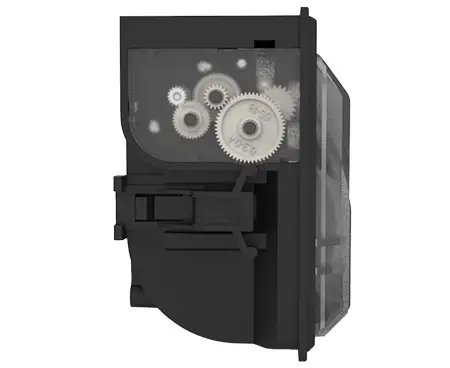

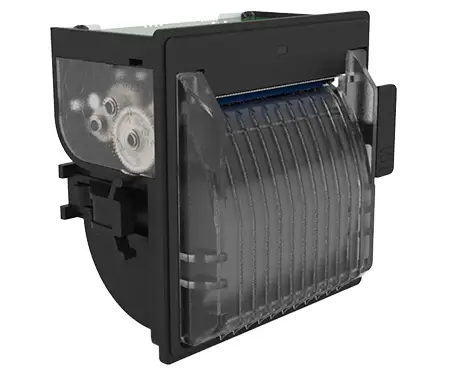

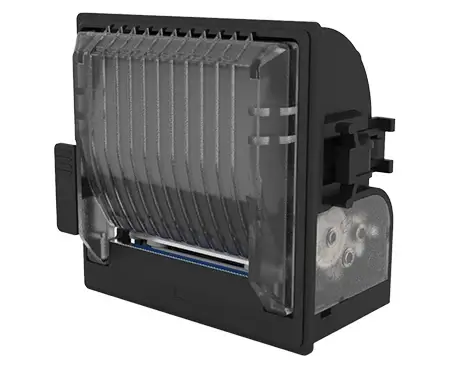

CUSTOM PM2 58mm (2.28in) Panel Printer

915NB010100333 / 915NB030100333

£149.00

For bulk orders please contact us.

The Custom PM2 is a high-performance panel printer engineered for integration into self-service terminals, industrial equipment, and kiosk systems. Designed to deliver fast, reliable, and maintenance-friendly thermal printing, the PM2 is ideal for applications that demand robust performance in compact spaces.

With a printing speed of up to 200 mm/s and a resolution of 203 dpi, the PM2 ensures crisp, clear text and graphics, making it suitable for receipts, tickets, and labels. It supports paper widths of 58 mm and 60 mm, with an easy-access front paper loading system that simplifies maintenance and reduces downtime.

The PM2 offers flexible connectivity options including RS232 and USB interfaces, ensuring easy integration with a wide range of host systems. Its compact dimensions and durable construction make it well-suited for environments where space is limited but performance is critical.

Whether in retail kiosks, ticketing systems, or industrial panels, the PM2 provides dependable printing performance with low operating costs and streamlined maintenance

Applications

  • Workshop equipment
  • Medical equipment
  • PC panel and control systems
  • Weighing instruments: industrial, portable
  • Fire detection systems
  • Sterilization equipment
  • Taximeters
  • Truck tachographs
  • Measurement devices
  • Cash handling system
ADD TO QUOTE

P/N: 915NB010100333 / 915NB030100333

  • High printing quality at 203 dpi
  • Printing method: thermal
  • Paper width: 57 mm ± 0.5
  • Paper roll diameter Ø 50mm
  • Integrated anti-roll system
  • Linerless paper printing and black mark label management
  • Fully compatible with PLUS2 mechanism
  • Ideal solution for tough environments: from 20 up to +70 degrees
  • With cover closed: 85 mm (W) x 56.1 mm (D) x 85.5 mm (H)
  • With cover opened: 85 mm (W) x 111.1 mm (D) x 85.5 mm (H)
  • Weight: 141 gr

Software

SOFTWARE PrinterSet: to update logos, edit characters, set operating parameters and update the printer firmware. It allows you to create a file including the different SW customizations and send them to the printer via the interface provided, for easy and fast setting.



Thanks to Custom Power Tool you can create – or change – on your own the layout of your tickets or receipts in a few simple steps. You can also do it without having computer skills, thanks to the practical interface which has been designed by Custom.

Printing Method Thermal with fixed head
Resolution 203 dpi (8 dots/mm)
Printing speed max 60mm/sec (@7.5V)
Supported Barcode 1D: UPC-A, UPC-E, EAN8, EAN13, CODE39, ITF, CODABAR, CODE93, CODE128, CODE32
2D: PDF417 and QRcode
Paper width 57 mm ± 0.5
Paper weight from 55 to 70 g/m²
Paper thickness from 63μm to 85μm
Roll Dimension Ø 50mm
Printing width 48 mm
Printing mode Normal, 90°, 180°, 270°
Printing format Altezza/Larghezza da 1 a 8, grassetto, negativo, sottolineato, corsivo
Character set European, International, Portuguese and Nordic, Chinese (GB18030), Katakana, Arabic, Greek, Turkish, Hebrew, and Cyrillic
Sensors Head temperature, paper presence, black mark alignment
Emulation CUSTOM/POS
PLUS
FH190
Interfaces RS232/TTL, USB
Data Buffer 8kB
Flash Memory 8MB (+768 Kb internal)
RAM Memory 256Kb internal
Graphic Memory Logos dynamic management (max. 32 kB graphic memory)
Head life 100Km (100M pulses)
Drivers Windows® (32/64 bit) – only on request WHQL and silent installation;
CUPS Linux (32/64 bit);
Virtual COM (Linux or Windows 32/64 bit);
Androidâ„¢
Software Tools PrinterSet, CustomPowerTool, Custom Windows API
Power supply from 4 Vdc to 8 Vdc (optional external power supply)
from 8 Vdc to 42 Vdc with optional module for extended range (optional external power supply)
Typical max. 3.2 A
Operating temperature -20 a +70
Dimensions With cover closed: 85 mm (W) x 56.1 mm (D) x 85.5 mm (H)
With cover opened: 85 mm (W) x 111.1 mm (D) x 85.5 mm (H)
Weight 141 gr
Available Versions
Description Part Number
PRINTER PM2 USB RS232 915NB010100333
PRINTING MECHANISM PM2 MEC 915NB030100333

Included with Packaging: PM2 Printer, Paper Roll Holder, Test Paper Roll.

Accessories
  • Power supply
  • Starter Kit: power supply cable + serial/TTL interface 5 Volt
  • Extended range module from 8 Vdc to 42 Vdc
  • Black frame 112×112 with clips

CUSTOM PM2

Datasheet

Download File
